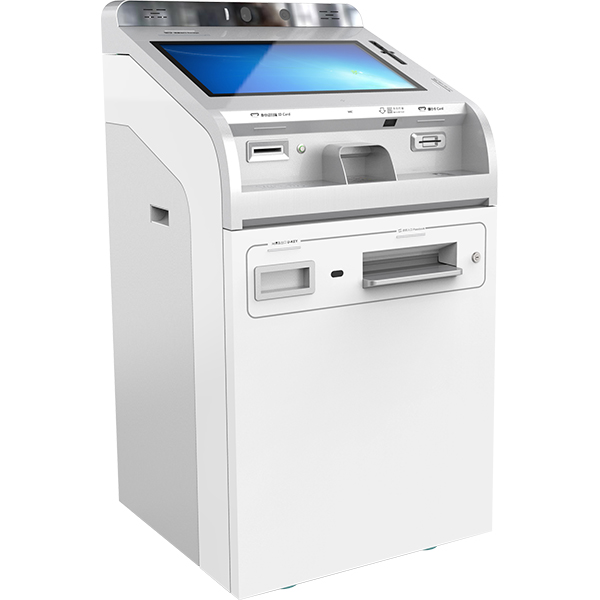

1800T Smart Teller Machine
The STM solution greatly simplifies customer transactions and business processes in industries such as retail, finance, tourism, hotels, telecommunications and technology, making people's life easier.
Statistics shows that the average time required for a transaction in remote intelligent teller system is only 3 minutes, which is one-tenth of traditional banking counter service. Customer do not need to take number, queue up and fill out forms when they arrive at bank branch, which greatly improves business operation efficiency.
Smart bank solution
Card & token issue
Flexible deployment
Video interaction
Feature

Versatile functionalities
Providing one-stop business processing platform for customers, satisfy comprehensive business needs such as account opening, card dispensing, contract signing, consultation, etc.
Flexible application deployment scenarios
Easy to be deployed at Mini branch, satellite branch and community branch as its effective way to expand the banking service channels. It achieves low-cost branch construction and meets the needs of community residents’ and micro enterprises customer's multiple coverage through smart equipment application.
High-quality business process experience
"On-site guidance, customer self-service, professional audit" provides new real-time collaborative business model. Using identity authentication, face recognition, big data analysis and other technical applications, achieves to rebuild the reputation of bank with better experience through precision marketing strategy.

Specification

CONTROLLING UNIT
● CPU: Intel 4cores 3.0GHz;4GB DDR3
● 128GB SSD
SOFTWARE
● Windows ® 7/8/10 or Linux
● CEN/XFS 3.0 or later
● I-Bank software suite
DIMENSIONS
● Height: 1175mm (46.3 in.)
● Width: 635mm (25.0 in.)
● Depth: 620mm (24.4 in.)
WORKING ENVIRONMENT
● Temperature: Indoor: 32℉(0℃) to 113℉(45℃)
● Relative humidity: 20% to 95% non-condensing
Display
● 21.5 inch capacitive (multi-point touch display);16:9
● Electromagnetic pressure sensing pen
Keypad
● Tactile 4*4 stainless steel keypad
● PCI compliant EPP
Card reader/dispenser/printer:
● Magnetic Swipe Reader
● Motorized card reader(opt.)
● Contactless smart card reader
● IC/magnetic card dispenser
● Card dispenser capacity: 150/250/450 pcs(opt.)
● Card return on power failure
● Retract card capacity: max. 10 pcs
Token dispenser(opt.)
Passbook printer(opt.)
A4 document printer(opt.)
Receipt printer
● 80mm graphical thermal printer
Video conferencing unit
● Facial camera
● Monitoring camera
● Audio speaker
● Private handset
Barcode reader: support barcode and QR code reading
Optical fingerprint reader
Proximity detector
